INSULATED AND COOLED TANKS

MARTE series and GIOVE series
WITH EMBEDDED REFRIGERATING GROUP

It's a production of refrigerated stainless steel tanks; capacity 50, 75, 100, 200, 300, 500, 800, 1000, 1500 and 2000 Lt

These thermoregulated stainless steel containers can be used for any need inherent cooling or heating of liquid foods such as, for example, the controlled fermentation of wine or beer, or storage of oil, milk and other beverages

Their peculiarity is that the refrigerant motor is already included in the base of the tank itself. This allows to obtain the cooling by a coil in direct contact with the outside of the tank, allowing to cool of all the content, instead of using plates or coils immersed in the liquid. The whole is then insulated with polyurethane foam. A further outer containment cylinder, also in stainless steel, encloses the whole and serves as a supporting structure. The refrigerant motor is fixed to the base  of the cylinder

These tanks can be open (series MARTE ) or with upper manhole cover (GIOVE series) and have two exit: the first on the bottom of the tank for the total discharge of lees in case of tartrates precipitation and the second as partial discharge  in the case of controlled fermentations as drawing point of clean liquid

All tanks are equipped with a digital  thermostat/thermometer that allows you to set and maintain the desired temperature during the cooling cycle that can go down, in case of motors SUPER, to -8 ° (used with spirits and distillates) or -4° in case of standard motors .
Upon request are also available versions
cooled  but also heated by electric heaters which can to be used for beer fermentation and for malolactic fermentation . In models equipped with electric heaters (heating) it is possible to heat the contents of the tank at temperatures up to 30°.
In the heating mode, we recommend the use of stirrers to prevent stratification of the liquid.


STAINLESS STEEL TANKS THERMAL REGULATED FOR WINE BEER OR OTHER LIQUIDS
FOR CONTROLLED FERMENTATION
FOR THE STORAGE OF THE WINE COOL
FOR SERVING OF WINE IN PUBS OR SUPERMARKET
  •          STANDARD EQUIPMENT                                ON REQUEST:
    Tank, cover and external structure AISI 304
    - Ball valves AISI 316
    Volt 220/1/50 (on request 380V  50 Hz)
    - conical bottom 10° o   50°
    Insulated with
    polyurethane foam                              - Pneumatic floating
    The motors 1500 and 2000 liters three-phase


    output connections male thread:
                                   - Crane for lifting floating
    1/2" up to  200
        (only x 1500-2000 lt.)
    3/4" up to
      500                                                             - Stirrer
    1" over 500 liters
                - NItrogen filler

               - Electric heaters

MARTE 500-GIOVE 300

     MARTE 100

Power comsumption tank MARTE and GIOVE

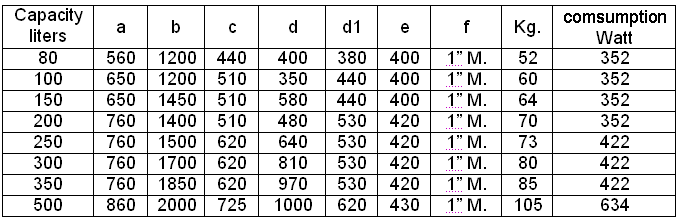

Dimensions an weight






TANKS ARE AVAILABLE OF ANY KIND AND SIZE WITH OR
 WITHOUT REFRIGERANT SYSTEM



ON REQUEST WITH NITROGEN FILLER
TO PREVENT
WINE OXIDATION





Construction diagram



digital thermostat


thermostat user manual
file  PDF


Marte 200



 series MARTE ( top open )

  Flat bottom        Conical bottom 10°
Pneumatic floater with pump



Closing tie with seal for
hermetic closing of the tanks
x tanks up to  200 LITRI €  105,00
x tanks up to  300 LITRI €  122,00
x tanks up to 500 LITRI € 172,00
LT. Ø x h(cm) KG. HP Kcal +10 Kcal -10°C Flat bottom
Prices €

10° Cone bottom € Extra price x Pneumatic floater
Normale SUPER Normale SUPER Normale SUPER
50 55x93 40 1/6 1/4 620 964 274 462 2'283,00 - 236,00
75 55x93 43 1/6 1/4 620 964 274 462 2'283,00 2’973,00 236,00
100 55x125 47 1/6 1/4 620 964 274 462 2'283,00

2’973,00

236,00
200 76x127 50 1/5 1/2 791 2152 351 1049

2’767,00*

 3'644,00*

300,00
300 76x152 70 1/4 5/8 943 2448 418 1243

3’176,00*

 3’985,00*

311,00
500 87x180 94 1/3 1 1316 3908 585 1800

4'083.00*

 4'961,00*

343,00
800 108x175 150 1/2 1,3/8 1980 4752 901 2270

5'855.00*

 6’173,00*

466,00
1000 111x201 195 3/4 * 2,5 (trif) 3017 10488 1279 4399

7'774.00*

 7'959,00*

533,00
1500 127x215 250 1 * 3 (trif) 4109 13252 1857 5965

9'787.00

9'817,00

576,00
2000 145x215 280 1 * 3 (trif) 4109 13252 1857 5965

       12'648.00

       13'713,00

801,00

Extra price x motor SUPER  + 16%

(*) Extra price x motor three-phase   + 8%

Extra price x heating (Electric heaters  € 390 up to  300 Lt. |  € 600  from  500 to 800 Lt.  |  € 800  from 1000 to 2000 Lt.



               series GIOVE  (top closed)                                                   manhole cover  1 or 4 knob bolts

LT. Ø x h(cm) KG. HP Kcal +10°C Kcal -10°C Flat bottom
Prices €
10° cone
bottom  €
Normale SUPER Normale SUPER Normale SUPER
100 55x138 55 1/6 1/4 620 964 274 462

3'023,00

 3'344,00

200 76x140 60 1/5 1/2 791 2152 351 1049

  3'588,00*

  3'973,00*

300 76x165 80 1/4 5/8 943 2448 418 1243

  4'015,00*

 4'442,00*

500 87x193 104 1/3 1 1316 3908 585 1800

  4'864,00*

  5'379,00*

800 108x188 160 1/2 1,3/8 1980 4752 901 2270

  7'060,00*

 7'670,00*

1000 110x214 203 3/4 2,5 (trif) 3017 10488 1279 4399

  8'861,00*

 9'803,00*

1500 127x214 260 1 3 (trif) 4109 13252 1857 5965

10'968.00

12'113,00

2000 145x214 290 1 3 (trif) 4109 13252 1857 5965

13'924.00

  15'352,00

Extra price x motor SUPER  + 16%

(*) Extra price x motor three-phase   + 10%

Extra price x heating (Electric heaters  € 390 up to  300 Lt. |  € 600  from  500 to 800 Lt.  |  € 800  from 1000 to 2000 Lt.






                                              HEATING
RESISTORS SYSTEM
All tanks MARTE  and GIOVE, in addition to the normal cooling function, can be equipped with electrical resistences which  allow , if needed, to  heat the liquid .

Extra price x heating
(Electric heaters  € 390 up to  300 Lt. |  € 600  from  500 to 800 Lt.  |  € 800  from 1000 to 2000 Lt.

For a similar result is also available heater CALOR (see below)
.



                                               THE NITROGEN FILLER 'VACUUM SYSTEM'  art.500
For the filling with nitrogen or carbon dioxide (to be specified in the order) of one or more
hermetic tanks of any size
The
nitrogen filler works by  rebalancing the depression formed inside the tank when the liquid is picked up.
 The empty space left by the removal is filled with nitrogen  (or CO2) instead of atmospheric air that oxidize the drink.
Applicable a
lso to closed tanks but not tested under pressure : the pressure inside the tank remains the same as the atmospheric pressure existing outside!

Usable on any hermetic tank with manhole or open tank provided with pneumatic floater with a hole for double-effect valve.   T
o connect multiple tanks it need inlet valves and collector switch to connect them in parallel

I
deal for the preservation of wine for domestic use.
The complete system consists of the PRESSURE REDUCER (CO2 or Nitrogen ), of the 'INLET
SAFETY VALVE  replacing the double-acting valve without any modification and of the VACUUM DISPENSER. There are versions to be applied to tanks of any model and capacity as well applicable even to the carboys by means of a special plug of silicone rubber.


PRESSURE REDUCER   VACUUM DISPENSER  INLET SAFETY VALVE INLET PLUG x CARBOYS

Complete nitrogen filler: €   401,00

Each further inlet safety valve     €   57,00
Only pressure reducer                  € 125,00
Only vacuum dispenser                €  225,00
Inlet plug X carboys                     €   73,00

Capacity : up to 100 lt/min







                                          THE NITROGEN FILLER 30 Millibar"  art.501
A further method for fill up with nitrogen or carbon dioxide (to be specified in the order) one or more hermetic tanks consists of introducing a gas into the tank at a pressure extremely reduced .
It 'consists of a STANDARD
PRESSURE REDUCER combined with a subsequent second stage which further reduces the pressure to deliver it up to extremely low levels in the order of 30 millibars (3/100 atmosphere)
Given the very low pressure supplied it can be used with any tank or container, even if not designed to withstand the pressures, if equipped with a hermetic seal then also open tanks with pneumatic floater.
Necessary also in this case the I
NLET SAFETY VALVE  which replaces the double-effect valve without modification.
For applications with more tanks you must also order as many VALVES as well COLLECTORS SWITCH to connect all the tanks in parallel while keeping it possible to isolate the line by the tap.

Ideal for the preservation of wine for domestic use.                                 Capacity : up to 80 lt/min



collector  4 x1 with taps :  160,00
collector  5 x1 with taps :  172,00
collector  10x1 with taps :  220,00

Nitrogen filler 30 Mb double stage € 429,00



THE FLOATERS FOR TANKS MARTE
OIL SYSTEM (
for use with oenological oil)              PNEUMATICISYSTEM

OIL WITH PUMP
lt. lt.

50-75-100

51,00 50-75-100 236,00
200 74,00 200 300,00
300 78,00 300 311,00
500 108,00 500 343,00
800 238,00 800 466,00
1000 256,00 1000 533,00
1500 413,00 1500 576,00
2000 451,00 2000 801,00

* Gru per sollevamento galleggiante + euro 375,00



                               THE STIRRERS
To maintain a uniform temperature throughout the tank. Available in various lengths

Monophase 220 V 50 Hz with external rotor mounted on self-lubricating bearings (long-life)
2800 rpm - propeller diameter. 40 mm. - length of rotation rod from 150 mm to 520 mm.



Fixed
Type : applicable with screws to the tank lid.



Floating type": installed directly on the pneumatic floater in place of the double-effect valve
The hermetic seal of the float is preserved.

Price including bracket set for installation on floater     €  216,00



IMMERSION HEATER  'CALOR'

Created to facilitate the re-start of the fermentation process of musts, but also suitable for many uses relating to the heating of a liquid such as wine, oil, water, juices, etc.
They are specially calibrated and proportionated  to the use required, both for the quantity of liquid where they are immersed , both for the temperatures that they must dispense without the danger to reach too high temperatures a risk of damaging the liquid itself.
The thermostat which they are equipped allows to obtain the desired temperature .
The material used is AISI 304 stainless steel, that is absolutely non-toxic but may also be obtained in other specific materials. On request are also available non-standard models for different temperature and purposes.

All models CALOR are supplied tested. They require no special maintenance and their operation is extremely simple.



MODEL

+ C° in h Lt Dimension (cm) Kg. Volt Euro

CALOR 1500  W.

10 10 1000 d 18 x h 162 3,5 230 €   539,00

CALOR 3000  W.

10 10 2000 d 18 x h 162 4 230 €   858,00
CALOR 4500  W. 10 10 3000 d 40 x h 205 4,5 230    924,00

CALOR 4500 trifase

10 10 3000 d 40 x h 205 8 230/400 €   950,00
