THE "DROPPING SYSTEM":

The wine is contained in stainless steel tanks located inside the barrels equipped with refrigerating motor; inside them the wine is cooled in one or two hours at the desired temperature. the temperature is set directly on the thermostat. Once the wine is cooled it can be served by gravity from the taps.
The working mode is the same as refrigerators at home; It does not require any special maintenance except for the normal cleaning that is done within the stainless steel tank containing the wine using an ordinary sponge. To choose the most appropriate machine should reflect on the following points:
If you need a barrel for two types of wine you can take two distinct refrigerators but you may take even only one divided into two compartments and with two taps. If the two wines are a white and a rosé, that can be served at the same temperature, you should take the type TU unique temperature, where the temperature can be set as for your needs, but it will be the same for both wines. If you have a white and a red wine, and you want to cool down the white and just a little 'cool the red, there is a type TN where the coils are only on the side of the white, but a bit' of fresh get through even the red.
If we want to choose two indipendent temperature for your two wines there is a type TD with two separate thermostats setting separately.
If you have doubts about the choice of capacity, and you do not have space problems (see tables with the dimensions) consider the following:
1) The price differences between the various capacities are low and a larger tank is filled less time in a week; in any case if it is too large it can still fill only in half. As a general rule to make sure that the maximum stay of the wine inside the barrel does not exceed 10 days, after which the wine residual can oxidize despite the floats.
2) If you have to put the barrel in plain sight against a column in the dinning room, you should consider the purchase of the the dedicated stool made in wood with the same style of the barrel.

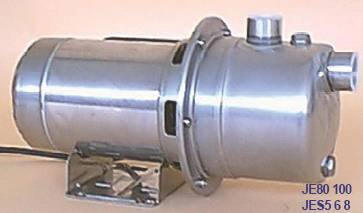

3) If you take the wine in carboys too heavy to lift and overturn into the barrel, it is useful to buy the TRANSFER PUMP.
4) The horizontal barrel is perhaps the most beautiful, but it, as opposed to the vertical, the floater anti-oxidation can't fits so you can preserve the wine from oxidation only for short period
5) If you need to serve sparkling wine this dropping system is not good! You must prefer to the COIL PRE-MIXER SYSTEM.
6) If you want the barrels NOT REFRIGERATED we can provide not mount the refrigerator but their cost does not vary much.
7) If you want a dark color, there is a difference in price of € 85.00

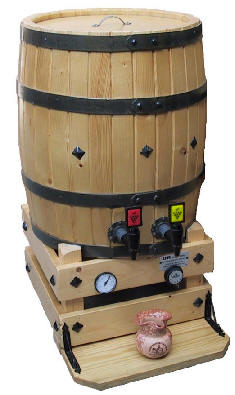

left BARREL 12+12 right TUN 12+12

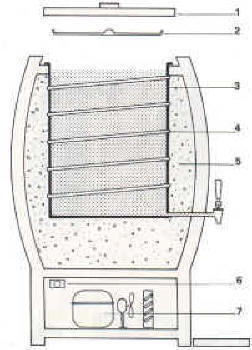

1       wood cover anti-dust
2       plastic floater anti-oxidation
3       stainless steel tank containing the wine
4       refrigerant copper expansion coil
5       polyurethane insulation foam
6       thermostat temperature
7       refrigerating motor


            barrel with double tank + floaters

Refrigerated barrels and tuns

The easiest way to cool and serve the wine: "dropping system"

- Rustic solid wood - Internal stainless steel tank open top for easy cleaning.
- Floater 'always-full' made to avoid the wine oxidation .
- Polyurethane insulation.
- Thermostat scalable for automatic temperature control.
- Simple tank (1 wine) and two tanks (2 wines).
- Upon request wood stool (see below) and transfer pumps
- Ready for operation (just insert the plug) and no special maintenance. Materials and spare parts are common everywhere.
- Standard color: clear fir; optional dark walnut color (€ 90.00)
- All models work with ecological gas R134a

STOOLS

modello	art.	cm.	kg.
STOOL A	art.21/A	55x48xh70	11
STOOL B	art.21/B	65x57xh70	13
STOOL C	art.21/C	74x66xh70	14
€ 316,00 (€ 395,00 x dark color)

TUN 25+25 TN

HORIZONTAL BARREL

BARREL 25+25 (art.20) +
STOOL (art.21)

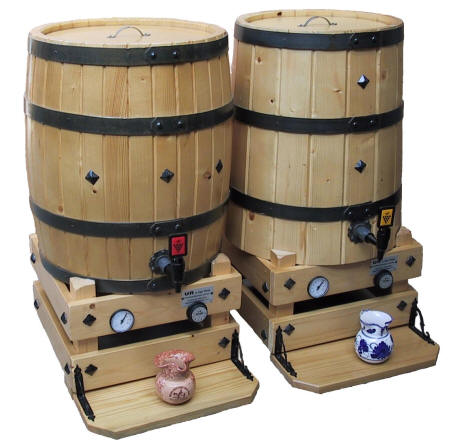

BARREL 25 and TUN 25

STOOL (art.21)

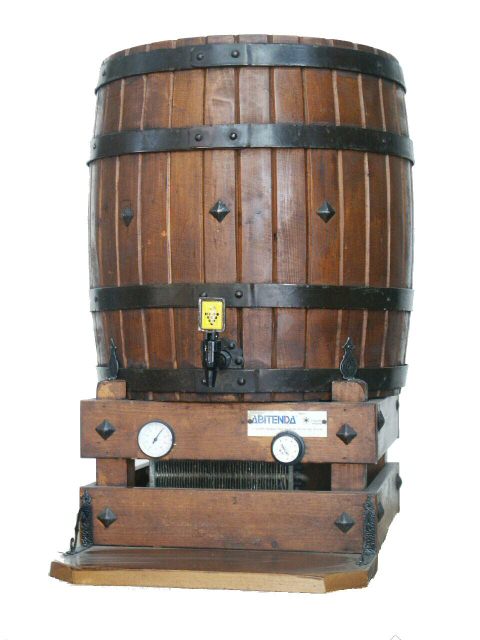

BARREL DARK COLOR

The single tank refrigerated TUNS (1 WINE):

art.	mod.	lt.	cm.	kg.	volt	banchetto (optional)	Modello TU (temp.unica)
1	T 5	5	36Xh46	16	220/50	art.21/A-	1'040,00
4	T 25	25	49x49xh81	40	220/50	art.21/A	1'389,00
5	T 50	50	56x56xh81	47	220/50	art.21/A	1'578,00
79	T 100	100	68x68xh97	55	220/50	art.21/B	2'212,00
80	T 150	150	78x78xh97	70	220/50	art.21/C	2'651,00

The double tank refrigerated TUNS (2 WINES):

art.	mod.	lt.	cm.	kg.	volt	STOOL (optional)	Model TU (unique temp.)	Model TN (diff. temp.)	ModelTD (double temp)
7	T 12+12	25	49x49xh81	40	220/50	art.21/A	1'556,00	1'857,00	2'102,00
8	T 25+25	50	56x56xh81	47	220/50	art.21/A	1'923,00	2'213,00	2'447,00
9	T 50+50	100	68x68xh97	60	220/50	art.21/B	2'429,00	2.713,00	2'981,00
10	T 75+75	150	78x78xh97	70	220/50	art.21/C	2'791,00	3'070,00	3'326,00

We can supply two tanks with the same temperature (TU), one tank cooled and the other cooled by proximity (TN) or two independent temperatures choice (TD).

The single tank refrigerated BARRELS (1 WINE):

art.	mod.	lt.	cm.	kg.	volt	STOOL (optional)	Model TU (unique temp.)
3	B 8	8	35X35X65	25	220/50	art.21/S	1'329,00
15	B12	12	35X35X79	32	220/50	art.21/S	1'329,00
19	B25	25	56x56xh81	40	220/50	art.21/A	1'539,00
17	B50	50	68x68xh97	47	220/50	art.21/A	1'717,00

The double tank refrigerated BARRELS (2 WINES):

art.	mod.	lt.	cm.	kg.	volt	STOOL (optional)	Model TU (unique temp.)	Model TN (diff. temp.)	ModelTD (double temp)
54	B 4+4	8	35X35X65	25	220/50	art.21/S	1'578,00	-	-
18	B12+12	12	49x49xh81	40	220/50	art.21/A	1'694,00	1’997,00	2’269,00
20	B25+25	50	56x56xh81	47	220/50	art.21/A	2'057,00	2’347,00	2'625,00

We can supply two tanks with the same temperature (TU), one tank cooled and the other cooled by proximity (TN) or two independent temperatures choice (TD).

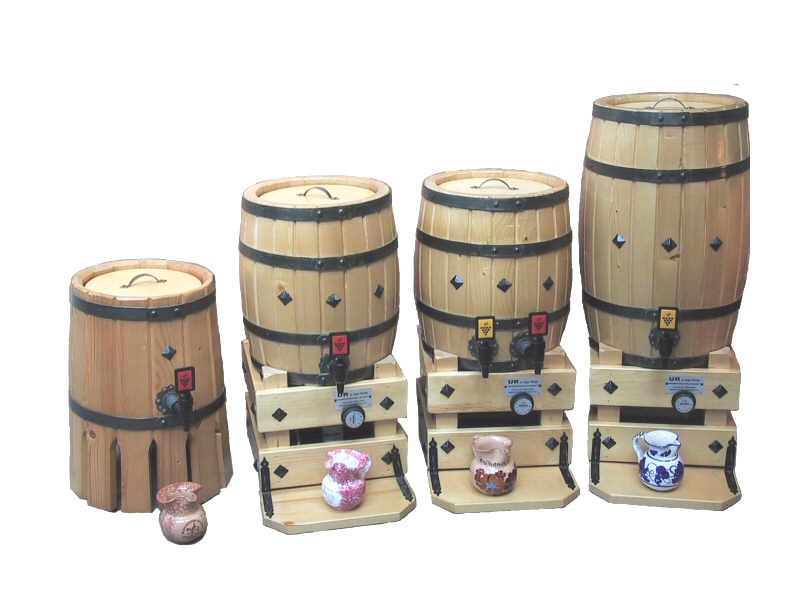

TUN 5 Lt. (art.1) Tun 'dama'

TUN 25 Lt. (art.4)

BARREL 12+12 Lt. BARREL 50 Lt.

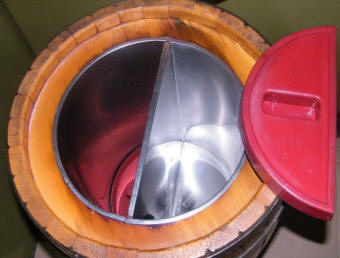

Overview of the internal tanks barrel 25+25

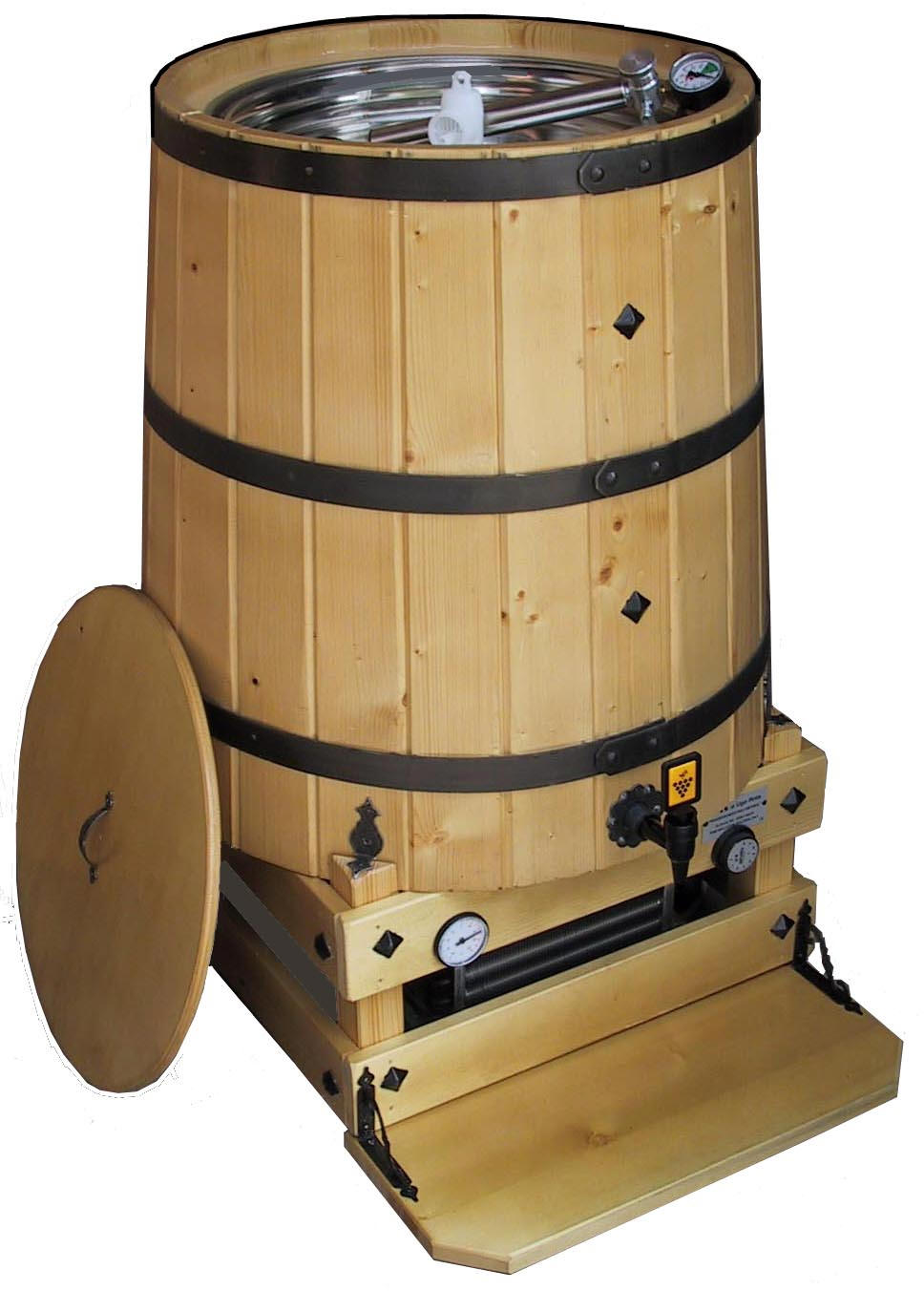

THE PNEUMATIC FLOATER
The PNEUMATIC FLOATER is applicable to the tuns and the barrels refrigerated with capacity from 50 liters to 100 liters to best preserve the wine for long periods of time which may also be of several weeks or even months. It's provided with a floater hermetically sealed that can act as' always-full' and eliminate the contact of wine with the air and the resulting oxidation that spoils the wine. Great for a family consumption while maintaining the desired temperature in the wine cellar, daily taking the desired quantity.

Upon request the floater can be supplied the NITROGEN FILLER to replace the outgoing wine with nitrogen or carbon dioxide.
